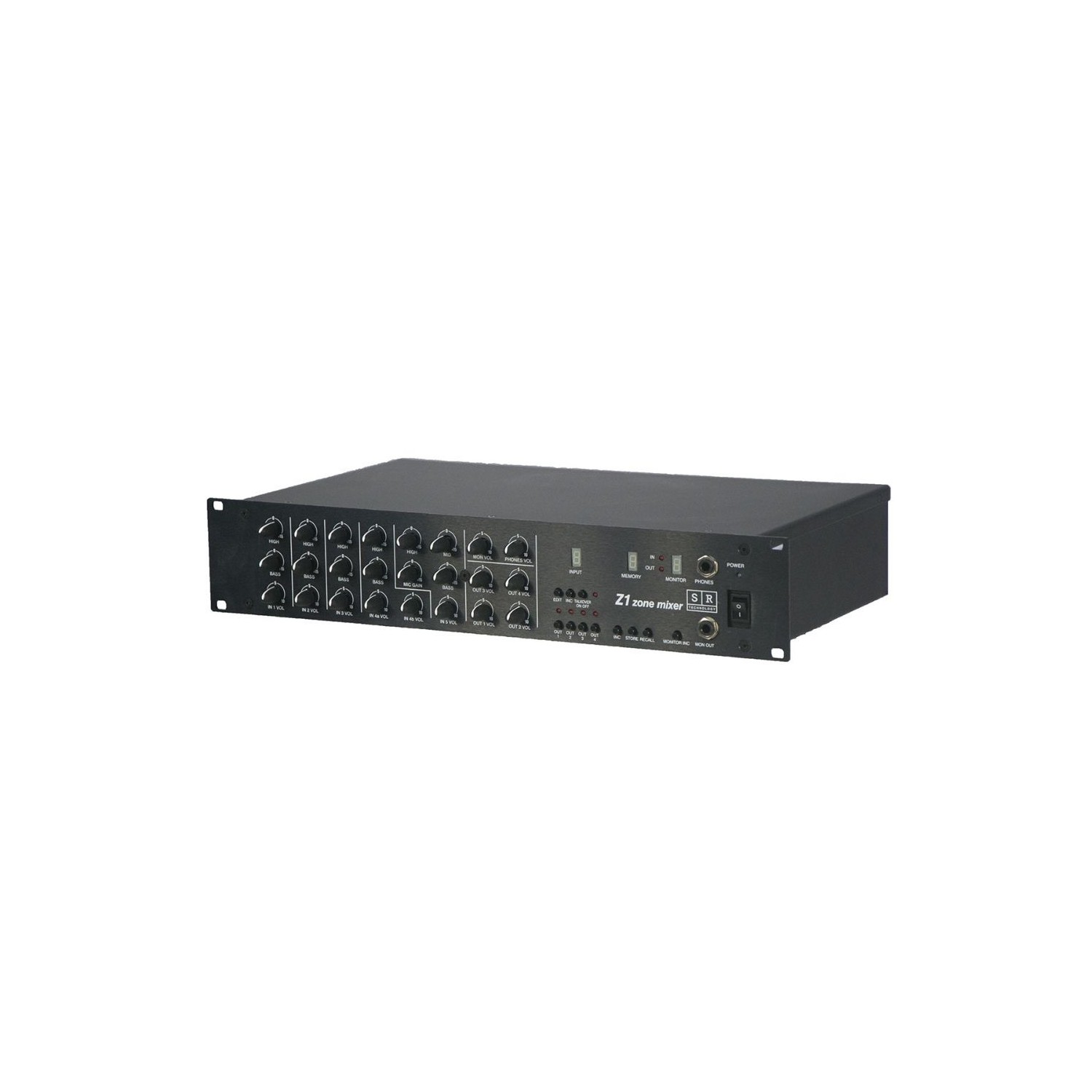

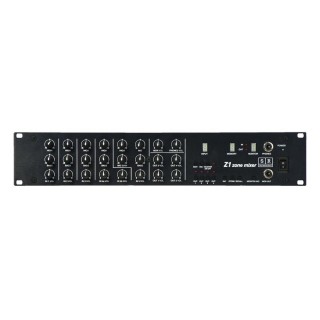

Z1 zone mixer

Passive zone mixer with 6 stereo inputs, 4 stereo balanced XLR outputs and digital memory for storage of 5 different zone configurations.

categories

INSTALLATION

Frequency response

20 Hz- 50 kHz (-1 dB)

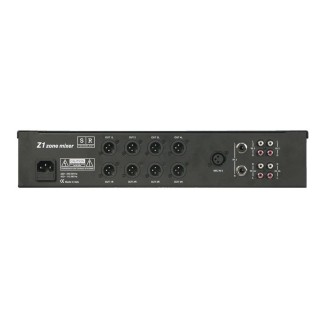

Connection

XLR mic in (1), JACK line

in (1), RCA line in (4), RCA line out (2),

XLR Output (4), Monitor Output, Phones

Input Impedance

600 Ω @ 1 kHz for XLR mic

22 kΩ @ 1 kHz for All Line Input

Input sensitivity

XLR mic -37 dBu (0.775 Vrms)

All Line Input 0 dBu (0.775 Vrms)

Controls

Hi-Low-Vol (Ch 1-2-3-4), Monitor Vol.

Gain-Hi-Mid-Low-Vol (Ch 5), Phones Vol., Output Vol (4)

Weight

kg 5,7

Dimensions (LxDxH)

2RU 19" x 250 mm Depth
