ROAD 320

Professional audio system specifically designed for high-grade instalaltions in small size venue, clubs, bars, ho.re.co, conference rooms, fitness centers, places of worship.

System consists of:

4 x loudspeakers model ROAD F6P, delivering 80W of continuous power and 160W peak

1 x power amp model PA475, rack mountable, unbalanced inputs - Jack 6.3 mm, mono-stereo switch, or link for inputs. Can be used in 2-channel stereo 2x75 Watt 4 ohms, 4 channels in mono 75 Watt 4 ohms and bridge 2 channels 150 watts into 8 ohms.

categories
INSTALLATION

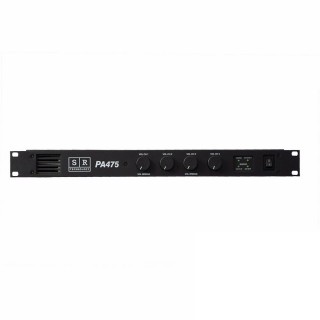

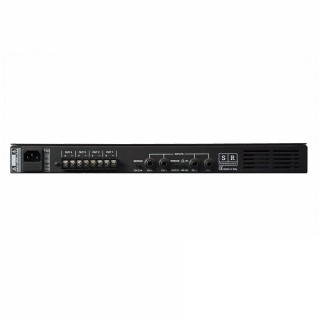

PA 475
Frequency response 20 Hz-  50 kHz  (-1 dB)
SNR  (A-weighted) 90 dB
Slew Rate 20 V/µs
Total Harmonic Distortion 0.1 % @ 140 W - 4Ω
Power Handling (Continuous/Peak)

8 x  150 W/ 280 W   @  4Ω

4 x   300 W  /  480 W  Bridge @ 8Ω
Connection

XLR Input line (8) balanced

Screw  Terminals
Input Impedance 22 kΩ @ 1 kHz for XLR Input
Input sensitivity XLR 0 dBu (0.775 Vrms)
Nominal Impedance 4/8 Ω
Protections

Output DC voltage, Output short circuit,

Over temperature
Controls Eight independent Volume
Weight Kg 18
Dimensions (WxDxH) 2RU 19"  x 380 mm Depth

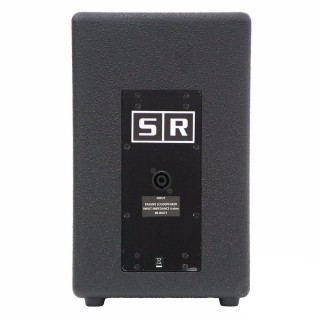

Road F6P
Frequency response 70 Hz-  20 kHz
Sensitivity 1W/1m 88.1  dBSPL
SPL max (calc.) 110 dBSPL
Crossover Passive - 18dB/octave, 2.4 kHz
LF Transducer 6" Profesional Woofer
Ferrite magnet circuit
Voice coil diameter 32 mm
HF Transducer

Dome tweeter 1" voice coil
Voice Coil diameter: 25 mm
110°x110° (H x V)
Power Handling (Continuous/Peak) 80W/160W
Connection Speakon Input
Nominal Impedance (Passive) 4 Ω
Controls No control
Box

12 mm Plywood
Two-way
Top hat composed
of welded steel tube ø 36 mm, h=77 mm
Weight Kg  6
Dimensions (WxDxH) 210 x 240 x 340 mm
